The OPAT Savant 10” is engineered for listeners who demand deep, accurate bass without sacrificing clarity or enclosure space. Designed to perform exceptionally well in compact sealed enclosures, it delivers tight, controlled low-frequency response with the kind of precision and output normally expected of much larger subwoofers.

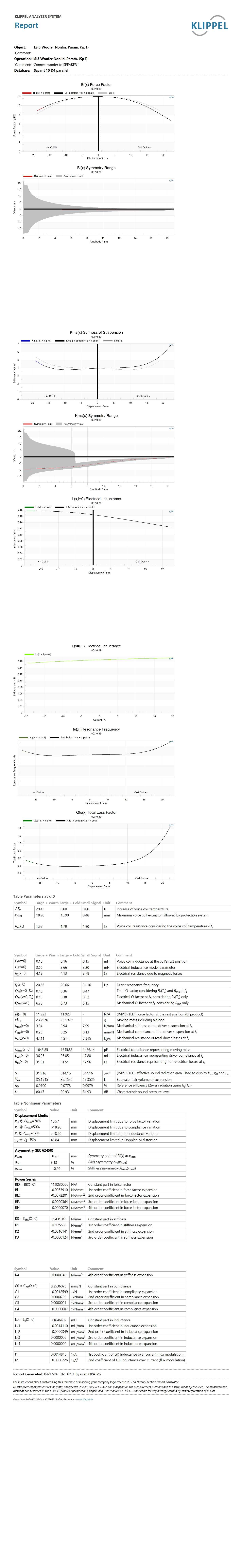

The design goal was to create a high output yet low distortion subwoofer, and with 18.5mm of klippel verified linear xmax, this 10” subwoofer delivers. It features a full length aluminum pole sleeve shorting ring to lower and linearize inductance. It uses a 4 layer D4 copper voice coil wound on a titanium former. An anodized aluminum cone with santoprene surround ensures that this subwoofer will not only sound great, but will be durable enough to last a very long time in your vehicle.


Small signal parameters Large signal parameters
Re 1.8 1.79
Le .15 .16
Fs 31.16 20.66
Qts .47 .36
Qes .52 .38
Qms 5.15 6.73
Bl 11.923 11.923
Mms 233.970 233.970
Cms .13 .25
Rms 7.915 4.511
Sd cm² 314.16 314.16
Vas L 17.3525 35.1545
Sensitivity 1w 81.93 80.93
Enclosure size Qtc Fb -3db Power level
.4 cubic feet .753 44hz 34hz 700 watts
.5 cubic feet .7 41hz 33hz 550 watts
.6 cubic feet .66 38hz 31hz 450 watts
